SOROB 200 Series Orchard Robot

Compact, flexible, and more powerful

Watch product videos
SOROB 200 Series Orchard Robot
Apply to various orchard environments

The SOROB 200 series orchard robot is a multifunctional orchard operation agricultural robot developed by SINOSO specifically for modern orchards. Compact in size, flexible in various greenhouse and orchard environments, can be equipped with multifunctional machinery, and can handle orchard operations with just one machine.

Drug loading capacity
200L
Maximum operating speed at full load
1.38m/s
Maximum full load climbing angle
30 ° (60% slope)
Navigation method
GNSS/SLAM
Navigation Accuracy
Centimeter level
Number of nozzles
4 (expandable)
Battery type
lithium battery
View complete parameters
Complete parameters
Click to collapse
Product model

SOROB 200

Whole machine drive type

Track drive

Outline dimension

1660(L)*800(W)*920(H)

Ground clearance

170mm

Net weight of the whole machine

500kg

Navigation method

GNSS/SLAM

Navigation accuracy

Centimeter level

Maximum pressure

8MPa

Whole machine power

5.8KW

Number of nozzles

4 (expandable)

Swing angle of nozzle

Biomimetic spraying 0 °~120 °

Unilateral spray amplitude

8m (maximum)

Maximum full load climbing angle

30 ° (60% slope)

Maximum operating speed at full load

1.38m/s

Container Capacity

200L

Medicine box material

Stainless steel or PE

Battery type

lithium battery

Battery capacity

100Ah*2

Nominal voltage of battery

60V

Charger Parameters

Input 220V/Output 72V/Current 50A

Remote control distance

≥ 1km (unobstructed)

Maximum flow rate

14L/min

Strong adaptability for various greenhouse orchard
Grapes, kiwi, dragon fruit, jujube, blueberries, cherries and other greenhouse orchards/outdoor orchards, row spacing 2-5 meters
Vineyard
Kiwi Orchard
Huolong Orchard
Winter jujube Orchard

200

LDrug loading capacity
Compact size, flexible shuttle

1.38

m/s operating speed
Unmanned driving and automatic operation

30°

Strong climbing ability
All terrain adaptation
SOROB - Product Highlights
SOROB 200 Series Orchard Robot
Compact and flexible, adaptable to all terrains

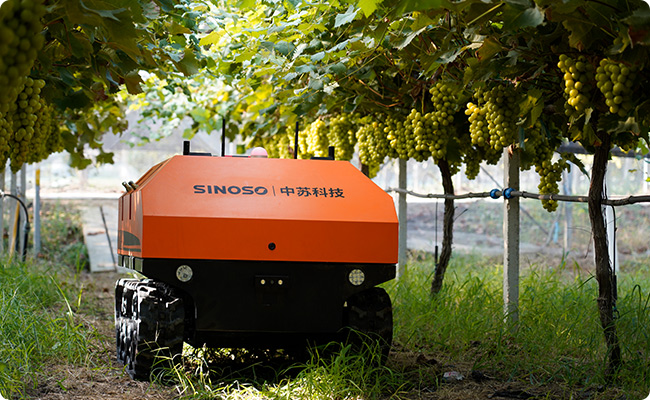

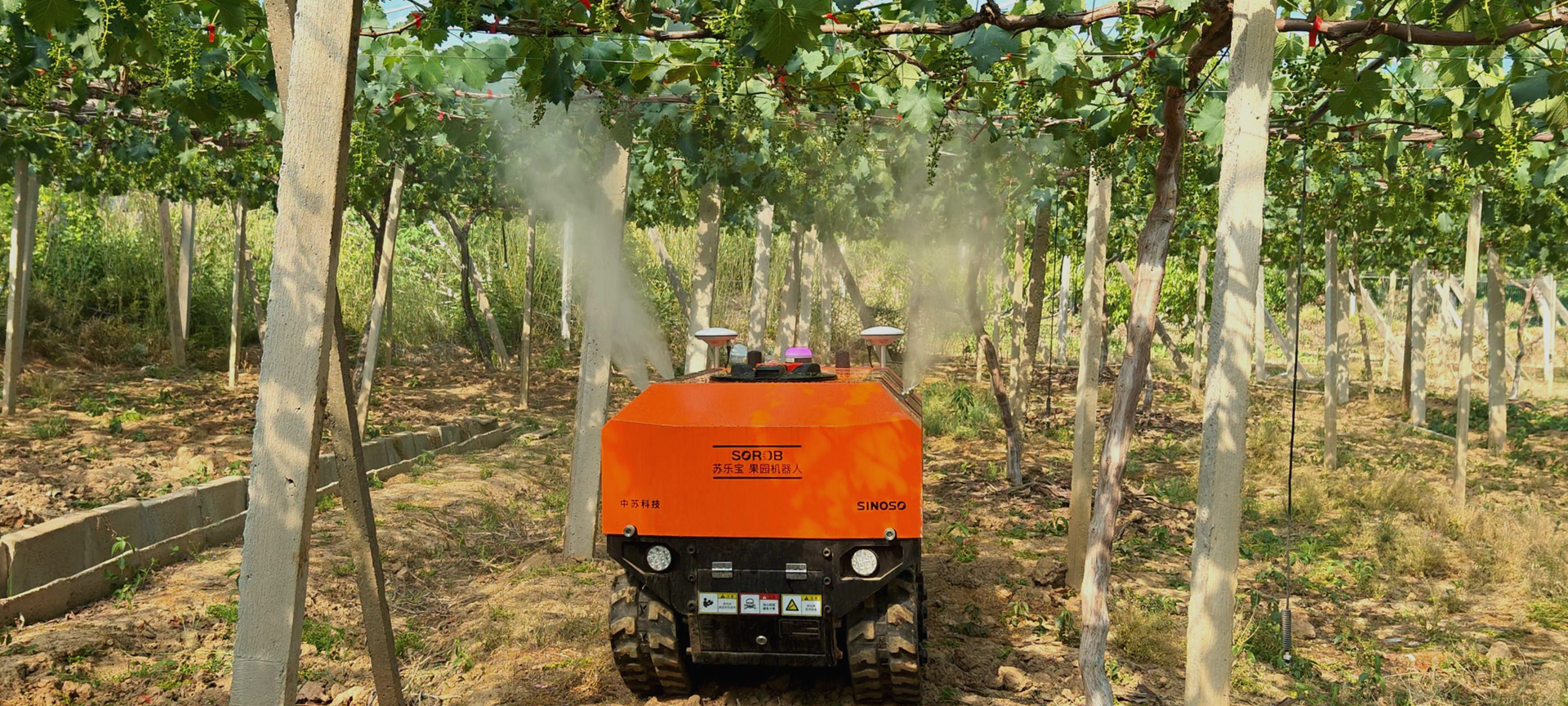

Compact in size, capable of flexibly navigating through greenhouse and orchard environments such as vineyards.

Track chassis design, suitable for various complex terrains, with a maximum full load climbing angle of up to 30 ° (60% slope).

Intelligent navigation, autonomous homework

Adopting GNSS/SLAM navigation technology to achieve centimeter level navigation accuracy.

Equipped with high brightness headlights and RTK receiver, ensuring clear visibility even in low light conditions such as dawn and evening.

Autonomous driving, intelligent planning of work paths, and automatic completion of work tasks.

Remote monitoring of job status, low battery and drug warning, worry free safe return.

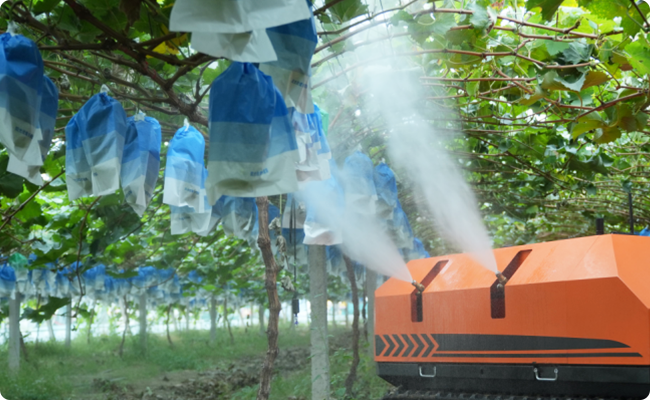

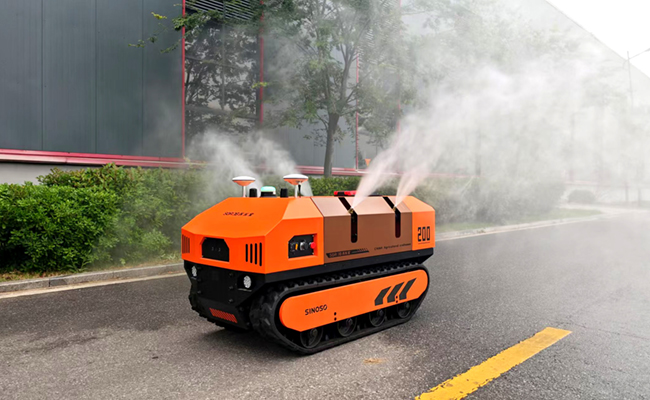

Precise pesticide application, reducing consumption and increasing efficiency

Integrated pressure spraying system, with a maximum spraying pressure of 10 mpa that can be adjusted according to actual needs, ensuring precise pesticide spraying and reducing waste.

Biomimetic spray nozzle with a swing angle of 0 ° to 120 ° to ensure even coverage of the leaf back.

The maximum single-sided spraying range can reach 8 meters, meeting the needs of large-scale orchard operations.

Efficient plant protection and precise management

Multi functional machinery can be installed to achieve one-stop orchard operations.

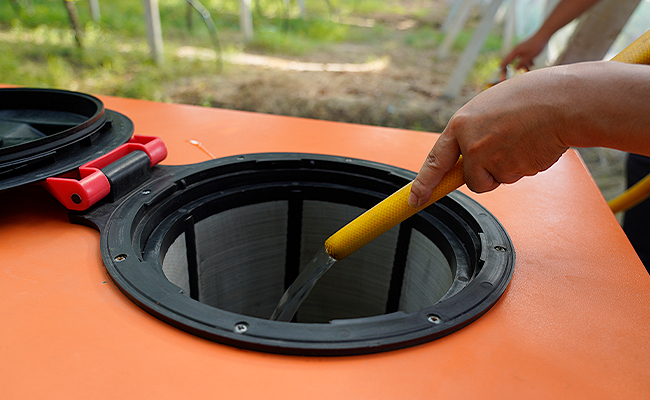

The dosing port is equipped with an enlarged filter screen to effectively prevent splashing of water.

The unique design of the dispensing port avoids residual medication and ensures the precision and safety of medication management.

Humanized design, convenient operation

Large capacity 200L medicine box, made of stainless steel or PE material, corrosion-resistant and easy to clean.

Driven by lithium batteries, with a battery capacity of 100Ah * 2 and a nominal voltage of 60V, it has strong endurance.

Equipped with an efficient charger, input 220V/output 72V/current 50A, fast charging without waiting.

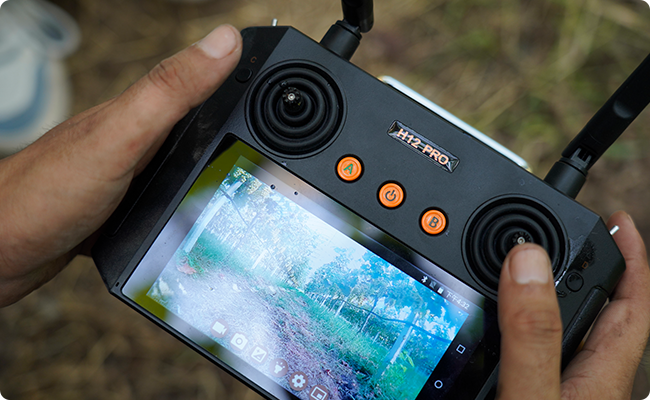

The remote control distance can reach 1 kilometer (unobstructed), and the operation is convenient and flexible.

Multiple expansion methods for you to freely match
Shipping moduleRemovable

SOROB 200 series orchard robot lightweight module body. Its plant protection and transportation modules can be freely disassembled, combined, and replaced at will. It can efficiently switch work modes according to the requirements of orchard operations, providing strong support for orchard management.

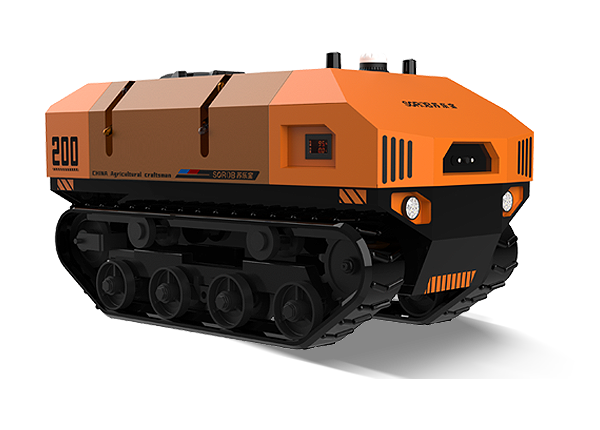

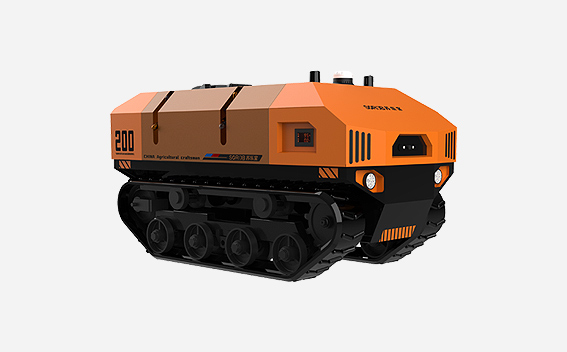

Plant protection module

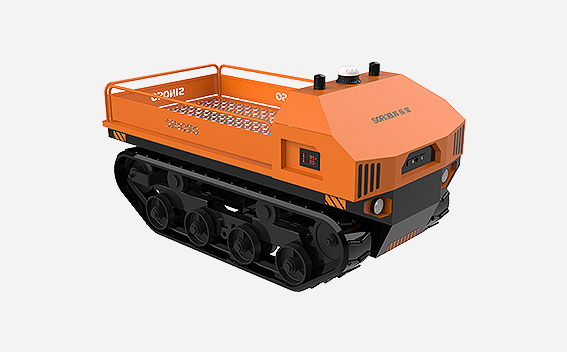

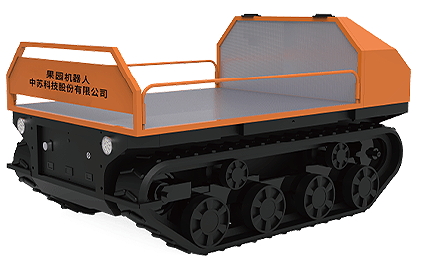

Shipping module
