SOROB 400 Series Orchard Robot

Intelligent assistance for efficient management of orchards

Watch product videos

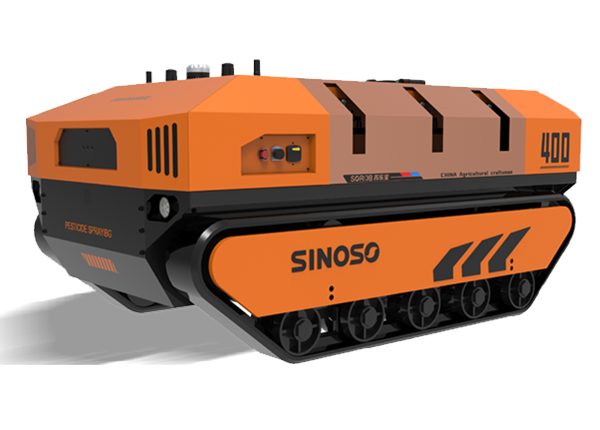

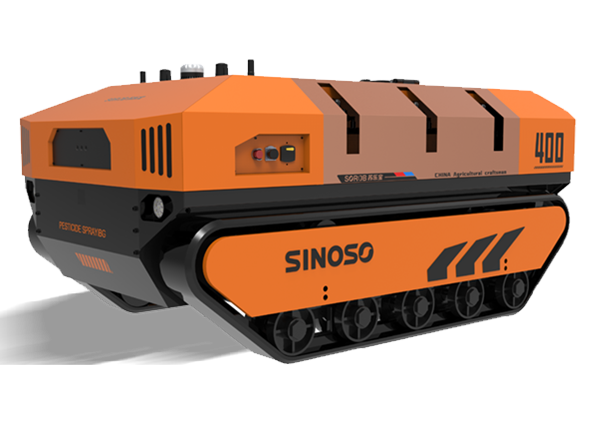

SOROB 400 Series Orchard Robot
Apply to various orchard environments

The Sulebao SOROB 400 series orchard robot is a multifunctional orchard operation agricultural robot developed by SINOSO specifically for modern orchards. Widely used in orchards with a row spacing of 3-8 meters, the biomimetic spray nozzle ensures even coverage of the leaf back, and can easily handle steep slopes. It intelligently assists in efficient orchard management and can be equipped with multifunctional machinery to complete orchard operations with one machine.


Drug loading capacity
400L
Battery type
lithium battery
Maximum operating speed at full load
1km/h
Maximum full load climbing angle
30 ° (60% slope)
Navigation accuracy
Centimeter level
Navigation method
GNSS/SLAM
Net weight of the whole machine
700kg
Ground clearance
210mm
View complete parameters
Complete parameters
Click to collapse
Product model

SOROB 400

Whole machine drive type

Track drive

outline dimension

2100(L)*1250(W)*1050(H)

Ground clearance

210mm

Net weight of the whole machine

780kg

Navigation method

GNSS/SLAM

Navigation accuracy

Centimeter level

Rated pressure

0.1~10MPa

Whole machine power

9KW

Number of nozzles

6 (expandable)

Swing angle of nozzle

Biomimetic spraying 0 °~120 °

Unilateral spray amplitude

10m (maximum)

Maximum full load climbing angle

30 ° (60% slope)

Maximum operating speed at full load

1m/s

Container Capacity

400L

Medicine box material

Stainless steel or PE

Battery type

lithium battery

Battery capacity

200Ah*2

Nominal voltage of battery

60V

Charger Parameters

Input 220V/Output 72V/Current 50A

Remote control distance

≥ 1km (unobstructed)

Maximum flow rate

28L/min

Strong adaptability for various outdoor environmen
Apples, peaches, pears, citrus fruits, papaya, bananas, etc., with a row spacing of 3-8 meters
Apple Orchard
Peach Orchard
Pear Orchard
Orange Orchard

1

m/s operating speed
Unmanned driving and automatic operation

30°

Strong climbing ability
All terrain adaptation

400

L Drug loading capacity
Compact size, flexible shuttle
SOROB - Product Highlights
Autonomous driving

Integrating modern agriculture and automation technology, utilizing sensors, computer vision, and AI technology to achieve autonomous navigation.

Autonomous driving and autonomous operation functions can significantly reduce the use of labor resources and improve operational efficiency.

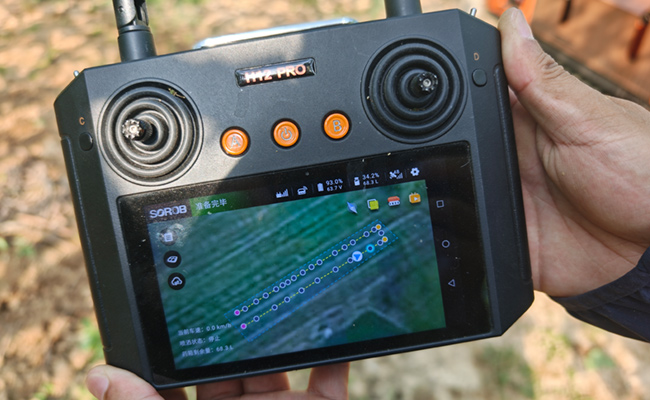

Path Planning

According to the actual application situation, unmanned driving and autonomous operation routes can be planned.

By utilizing sensors to obtain environmental information and calculating the optimal path through algorithms, obstacle avoidance and efficient movement can be achieved to meet the needs of orchard operations.

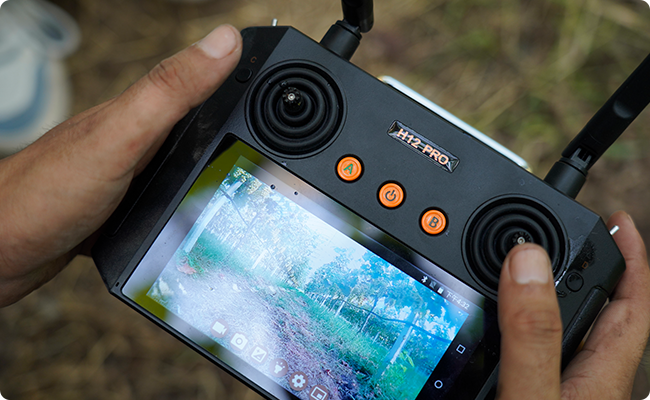

Remote monitoring

Real time monitoring of machine operation status and the surrounding environment can reduce misjudgments, improve work efficiency, and reduce manual labor intensity.

Enhanced the transparency of orchard management, facilitating users to adjust work parameters or issue instructions in a timely manner, ensuring smooth operation.

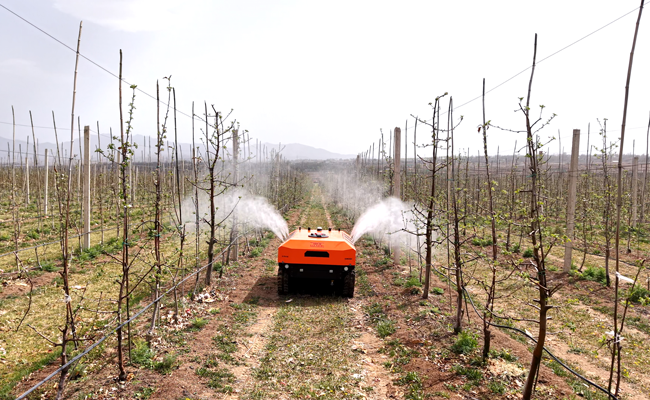

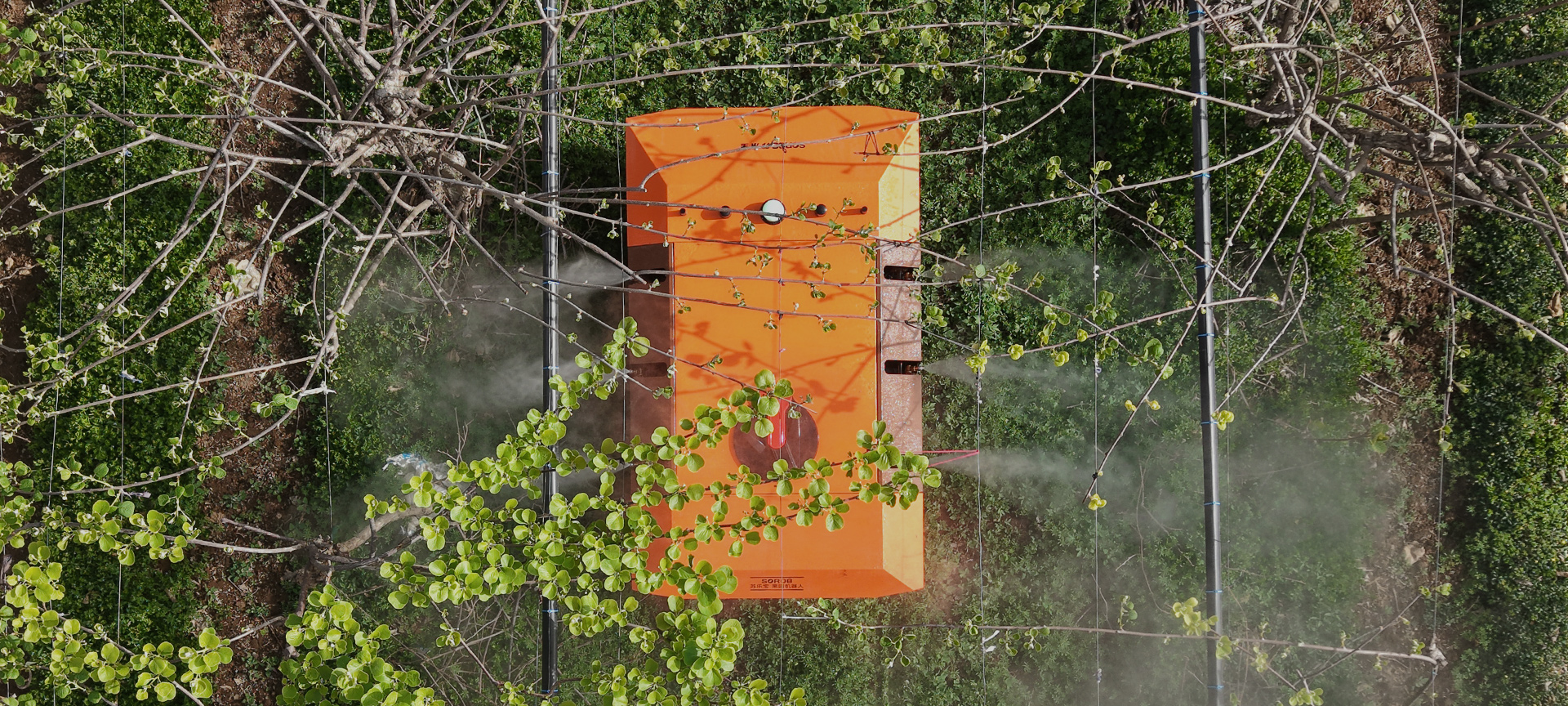

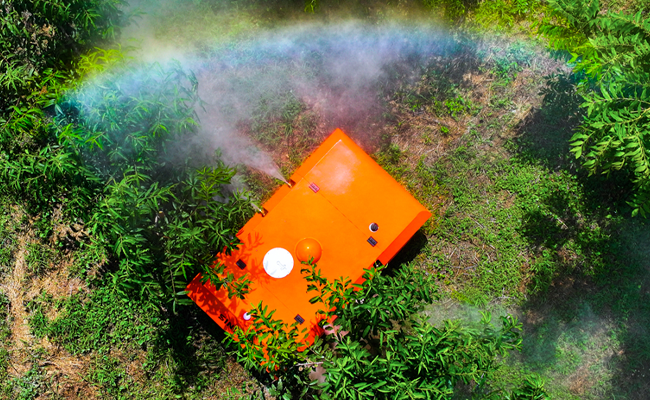

Uniform spray

Change the droplet size by changing the spray nozzle model for different crops; Air spray can also be increased to realize the secondary atomization of liquid medicine, and the liquid medicine can be more evenly covered on the back and surface of leaves.

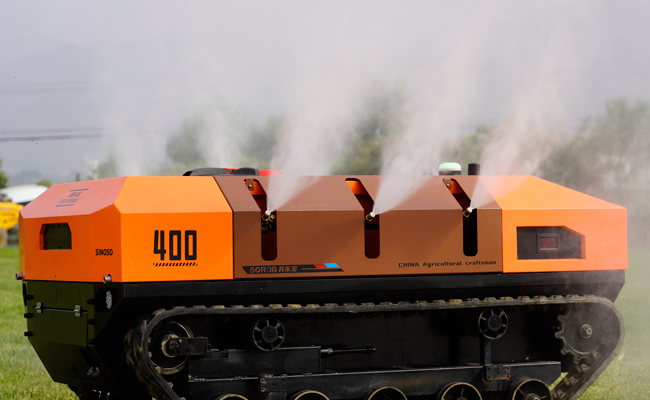

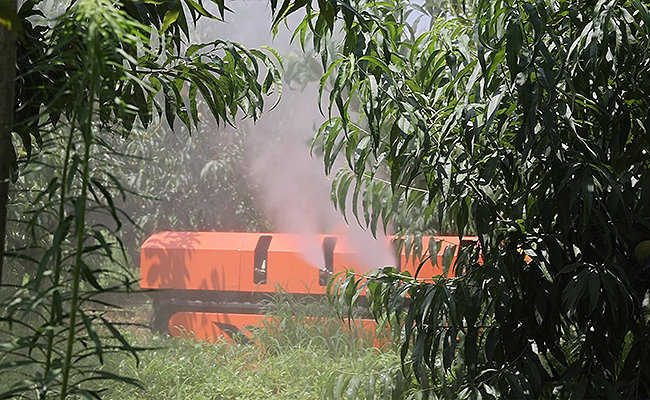

Strong penetration

High pressure spray, the pressure can be manually adjusted, for thick canopy fruit trees, from leaf pulling to refraction, finally forming rebound, spray has better effect.

Extra long work

Large capacity 400L medicine box, made of stainless steel or PE material, corrosion-resistant and easy to clean.

Driven by lithium battery, with a capacity of 400Ah and a nominal voltage of 60V, it has strong endurance.

Equipped with an efficient charger, input 220V/output 72V/current 50A, fast charging without waiting.

The remote control distance can reach 1 kilometer (unobstructed), and the operation is convenient and flexible.

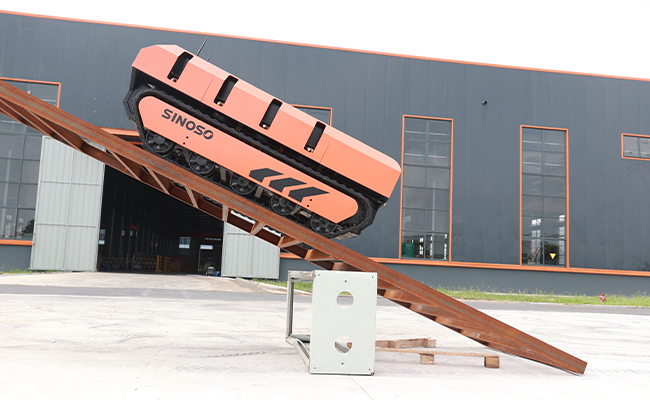

Strong climbing ability

The maximum load climbing slope can reach 30 degrees, suitable for more working environments.
